COMFORT DESIGN SHUTTER SYSTEMS

Whether you are renovating an old building or planning to build a new one: Comfort-Design Plus covers all your sun protection, theft protection and mosquito net needs.

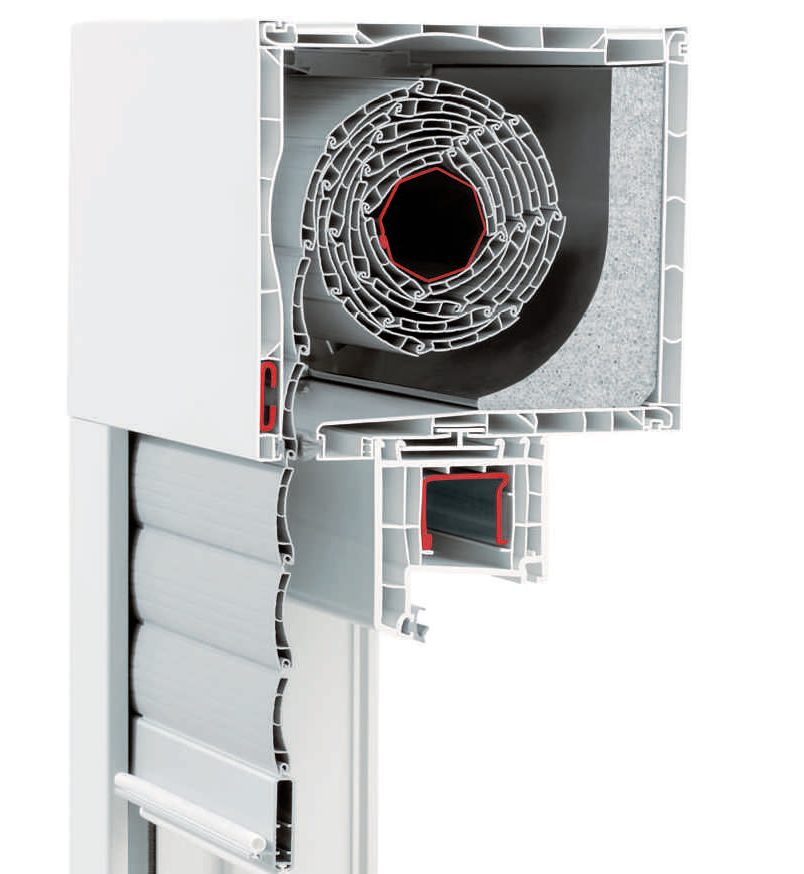

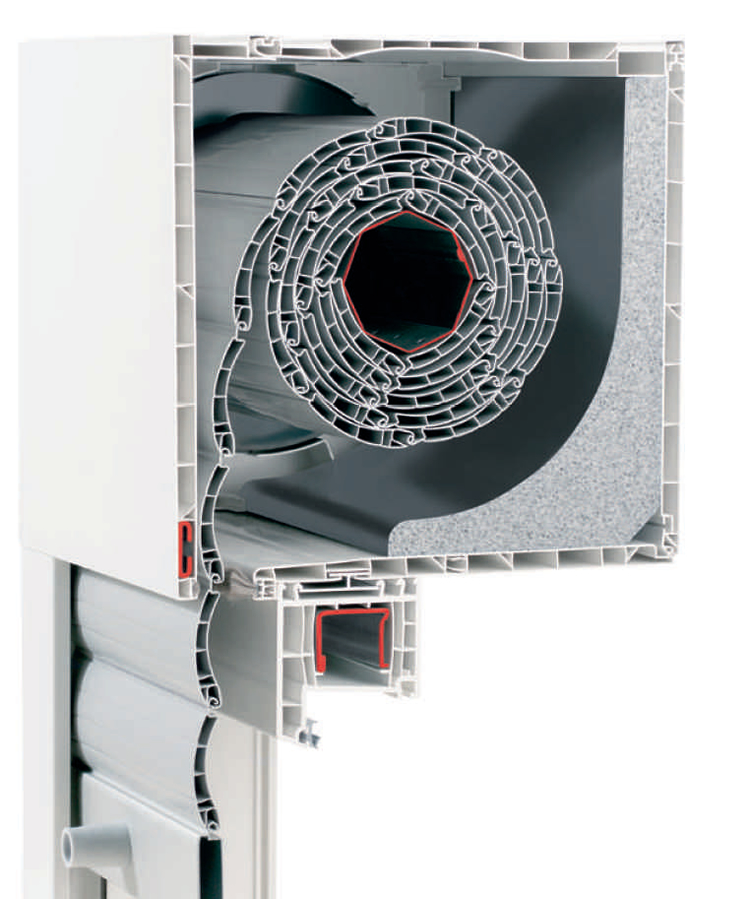

Thanks to their compact shape, the three shutter box sizes 155 mm, 195 mm and 195 mm universal are suitable for retrofitting old buildings. 245 mm louver boxes, on the other hand, are preferably suitable for higher window and door elements in new buildings due to their large louver boxes.

FEATURES

• Designed for case profile depths between 58-90 mm
• Thermal insulation: U < 0.85 W/m²K
• Sound insulation: Rw,P= up to 42 dB
• Available in box sizes 155, 195, 195 universal and 245 mm
• Element heights of up to 1.5 m in 155 mm box size.
• Element heights of up to 2.7 m in 195, 195 universal and 245 mm box sizes
• Box dimensions 195 universal and 245 mm, optional downward opening inspection hatch

DESIGN

• The right solution for heights up to 2.7 m in new and old buildings

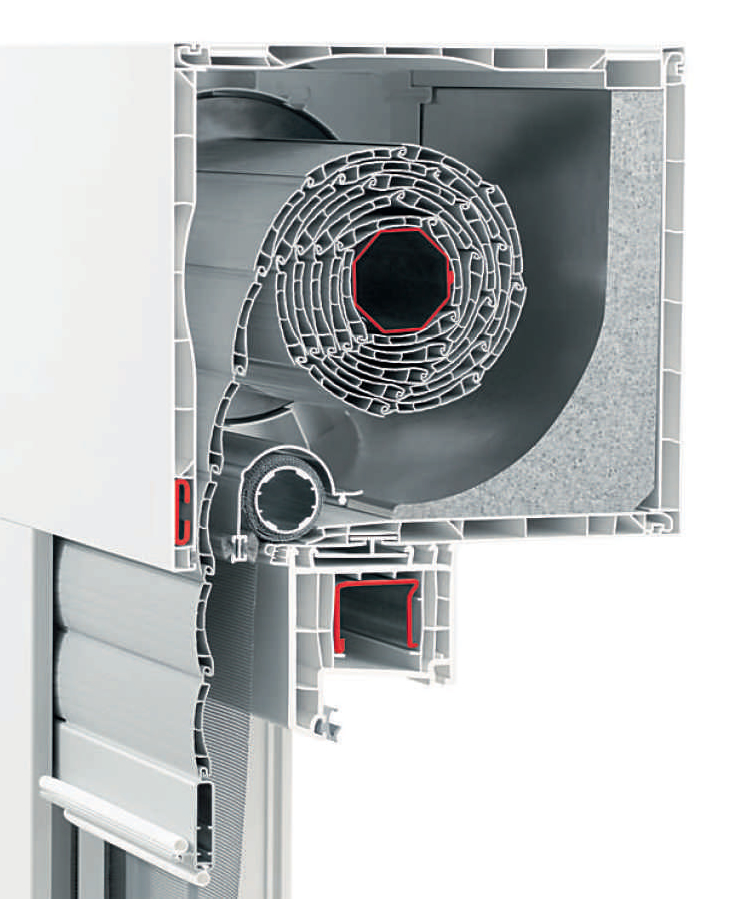

• Integrated mosquito net (of opaque, weatherproof glass fiber fabric) available for box sizes 195 universal and 245
• It is optionally offered with a downward opening revision cover, so it can be plastered both internally and externally.
• The sloping base profile transfers moisture to the outside.
• The mounted lifting safety device increases theft protection.

ADVANTAGES

• REHAU Brilliant-Design Lift-Slide Doors are resistant to ALL weather conditions. Even 115 km/h wind speed and heavy rain cannot affect it.
• Your living rooms will always stay warm and comfortable in winter thanks to the 4-chamber frame and threshold profiles without thermal bridges.
• You get very good thermal insulation values.
